Garment Auxiliary Equipment & Accessories

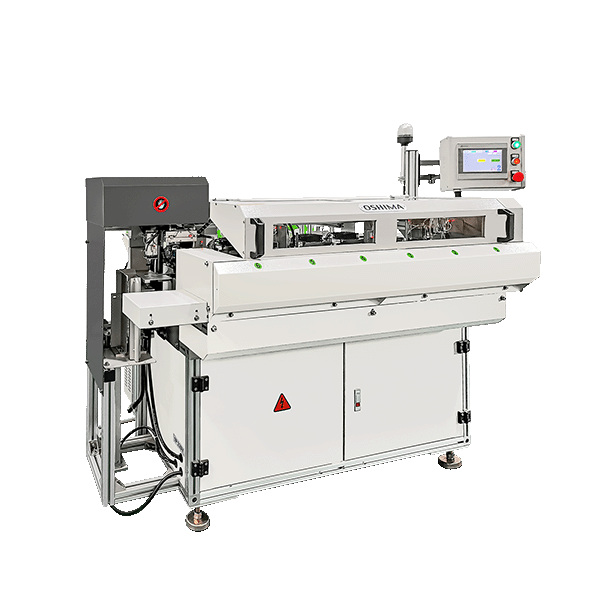

Multi-Wash Care Label Cutting & Bonding WLS-302
Cut, align, bond care labels.
- Features
- Handles up to 6 care labels per set
- Completes label bonding within 6 seconds
- Automatic feeding system
- Automatic cutting with hot and cold cutting modes
- Label alignment before bonding
- Ultrasonic bonding with selectable bonding point patterns
- Missing-label detection and auto-pause function
- Touchscreen interface, multilingual support, and remote connection
Description
WLS-302 is designed for wash care label bonding in garment production. It integrates label feeding, cutting, alignment, and ultrasonic bonding in one workflow.
The machine sends labels to an automatic lifting tray for easier pickup and supports adjustable label quantity based on production requirements. Its ultrasonic bonding function allows different bonding point patterns, while hot and cold cutting modes can be selected according to label material.
The machine is equipped with missing-label detection, automatic pause, touchscreen control, multilingual operation, and remote connection support.
Specifications
| Model | WLS-302 |
|---|---|
| Model | WLS-302 |
| Power supply | 1P / 220V |
| Power (kW) | 3.2 |
| Label width (mm) | 15–50 |
| Label length (mm) | 35–135 |
| Label quantity (pcs) | 1–6 |
| Cutter temperature (℃) | Room temperature–150 |
| Label stacking cycle (s) | Ultrasonic 5–6 |
| Label material | Chemical fiber required for ultrasonic bonding |
| Dimensions L × W × H (mm) | 1600 × 1200 × 1250 |
| Packaging volume L × W × H (mm) | 1800 × 1350 × 1400 |
| N.W / G.W (kg) | 200 / 230 |
*Design and specifications subject to change without prior notice.
