Garment Auxiliary Equipment & Accessories

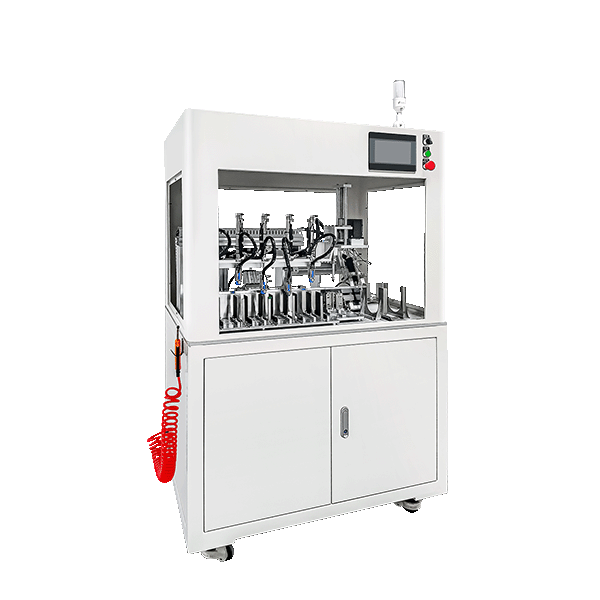

Multi-Wash Care Label Assembler WLA-720
2–6 care labels in one cycle.
- Features
- Handles 2 to 6 care labels at one time
- 4.5–5 seconds per label cycle
- Laser alignment system for label positioning
- Ultrasonic bonding for secure label attachment
- Multiple label storage slots
- Finished-label collection box
- Compact and movable machine design
Description
This automatic care label assembling machine is designed for garment factories that need to assemble multiple wash care labels in one process. It uses laser alignment to position each label and ultrasonic bonding to attach the labels without traditional sewing or manual stacking.
The machine supports 2 to 6 labels per set and includes multiple label storage slots for different label types. Its compact structure and movable design make it suitable for production areas with limited space or flexible workstation arrangements.
Specifications
| Model | WLA-720 |
|---|---|
| Model | WLA-720 |
| Power supply (V) | 1P / 220V |
| Power (kW) | 1.2 |
| Intake pressure (MPa) | 0.5–0.7 |
| Suction pressure (MPa) | 0.2 |
| Number of finished product labels per group (pcs) | 2–6 |
| Label length range (mm) | 45–100 |
| Label width range (mm) | 34 / 45 / 50 |
| Bin capacity (pcs) | 25–50 |
| Running speed (s / pcs) | 4.5–5 |
| Stitch type | Ultrasonic |
| Dimensions L × W × H (mm) | 1000 × 700 × 1650 |
| Packaging volume L × W × H (mm) | 1160 × 860 × 1860 |
| N.W / G.W (kg) | 250 / 300 |
*Design and specifications subject to change without prior notice.
