Fusing & Bonding Machines
Fusing Machine Feeder and Collector System OP-1800T
Roll feeding and collecting for large fusing lines.
- Features
- Designed for feeding and collecting with large fusing machines
- Suitable for roll-to-roll fusing and laminating processes

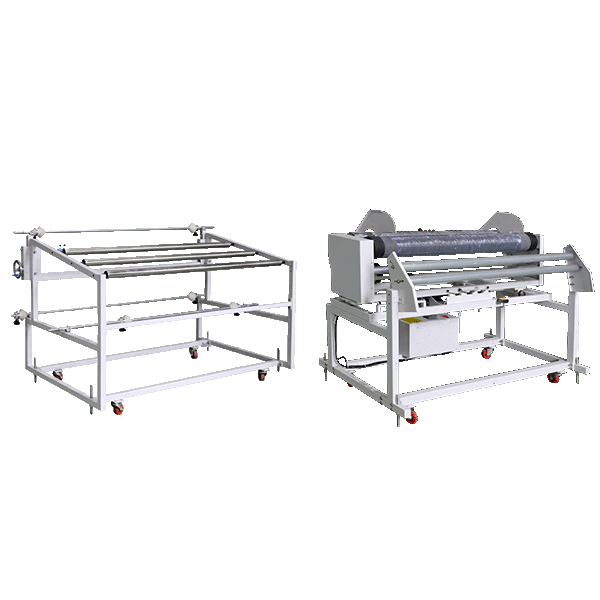

- Feeding rack with manual edge alignment
- Three adjustable fabric threading racks
- Supports single-operator operation
- Collecting system with edge alignment
- Rear collecting system with automatic rewinding
- Suitable for large fusing machines with working width of 1400 mm and above
Description

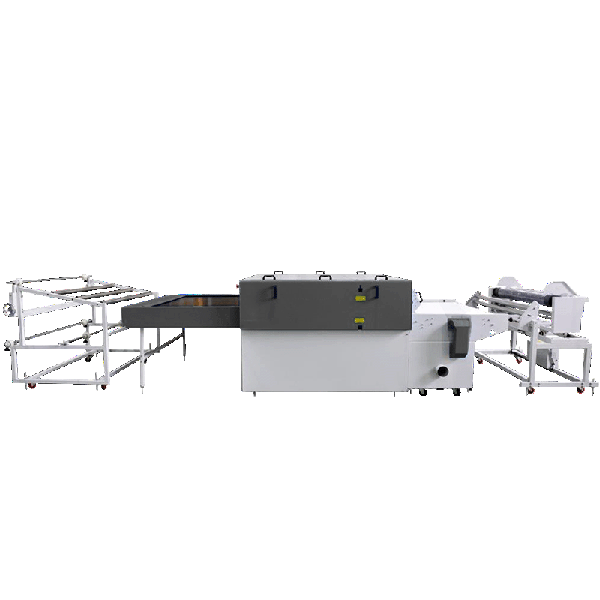

OP-1800T feeding and collecting rack is used with large fusing machines for continuous roll-fed fusing and laminating applications. The feeding rack includes a manual edge alignment system and three adjustable threading racks for roll fabric handling. The collecting system includes edge alignment, while the rear collecting system supports automatic rewinding for more organized fabric collection after fusing. This system is suitable for large fusing machines with a working width of 1400 mm and above, including A / L series, NS series, and NL series.
Specifications
| Model: OP-1800T | |
|---|---|
| Power supply | 1P / 220V |
| Motor (kW) | 0.3 |
| Fusing Width (mm) | 1800 |
| Dimensions L × W × H (mm) |
2500 × 850 × 1100 2400 × 1250 × 1200 |
| Packaging Volume L × W × H (mm) |
2700 × 1000 × 1300 2600 × 1450 × 1400 |
| N.W / G.W (kg) | 650 / 780 |
*Design and specifications subject to change without prior notice.
