Shirt & Garment Part Preparation

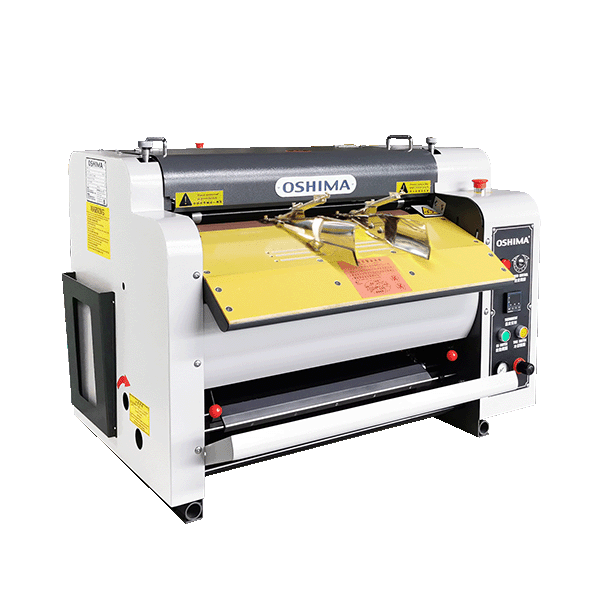

Sleeve Placket Creaser OP-500
Stable pressing for shirt sleeve plackets.
- Features
- Belt-type sleeve placket pressing machine
- Pneumatic cylinder pressure system
- Belt correction device for longer belt service life
- Emergency stop switch for safer operation
- Simple operation for shirt sleeve placket forming
- Standard machine without sleeve placket module
- Optional sleeve placket module by customer size
Description
OP-500 is used for shirt sleeve placket pressing and forming. It is suitable for sleeve placket parts that require shaped pressing before the next sewing or finishing process. The machine uses a belt-type pressing structure with pneumatic cylinder pressure. For sleeve placket applications, the optional sleeve placket module can be made according to the size provided by the customer.
Specifications
| Model | OP-500 |
|---|---|
| Power supply | 1P / 220V |
| Motor (kW) | 0.046 |
| Heater (kW) | 4.5 |
| Use air pressure (MPa) | 0.2–0.5 |
| Temperature (°C) | Room temperature–180 |
| Dimensions L × W × H (mm) | 660 × 1020 × 620 |
| Packing volume L × W × H (mm) | 1070 × 830 × 840 |
| N.W / G.W (kg) | 170 / 200 |
*Design and specifications subject to change without prior notice.
