Shirt & Garment Part Preparation

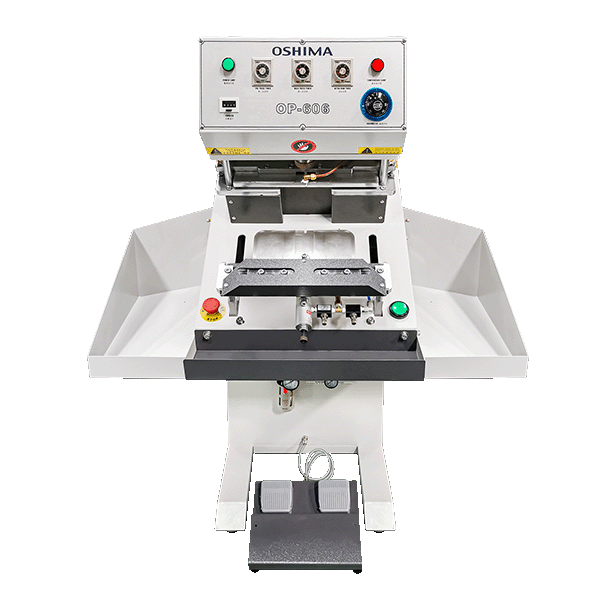

Cuff Shaping OP-606
Shape shirt cuffs before sewing.
- Features
- Designed for shirt cuff forming and pressing
- Suitable for four-corner, five-corner, and round-corner cuffs
- Automatic mold-driven operation
- Built-in safety features for operation
- Prepares cuffs before attaching them to shirt sleeves
Description
OP-606 is designed for pressing and forming shirt cuffs before they are attached to sleeves. Production capacity of 320–350 pieces per hour. It is suitable for cuff preparation in shirt production lines where cuff shape needs to be formed before sewing.
The machine can process different cuff styles, including four-corner, five-corner, and round-corner cuffs. Its automatic mold-driven structure supports repeated cuff forming, while the control panel is kept simple for daily factory operation.
Specifications
| Model | OP-606 |
|---|---|
| Model | OP-606 |
| Power supply | 1P / 220V |
| Use air pressure (MPa) | 0.5 |
| Heater (kW) | 1.3 |
| Temperature (°C) | Room temperature–180 |
| Machine dimensions L × W × H (mm) | 540 × 560 × 1320 |
| Packing volume L × W × H (mm) | 840 × 660 × 1480 |
| N.W / G.W (kg) | 125 / 170 |
*Design and specifications subject to change without prior notice.
