Pressing & Ironing Equipment
Stain Removing Machine OP-408S/408A/408H
Targeted stain removal for garment finishing.
- Features
- Garment spotting table for industrial and commercial use
- Suitable for garment factories, hotels, and dry cleaners
- Dual spray gun setup for stain treatment
- Negative-pressure suction arm for cleaning support
- Two separate containers for different cleaning agents
- Adjustable working table height
- Foot-pedal suction control and manual spotting switch
- Pressure gauge for process monitoring
Description
OP-408S / OP-408H / OP-408A is designed for garment stain removal and spot cleaning before final finishing or delivery.
The machine includes two independent containers for different cleaning agents, allowing operators to select the proper solution based on the stain type. The suction arm helps remove moisture and residue during the spotting process.

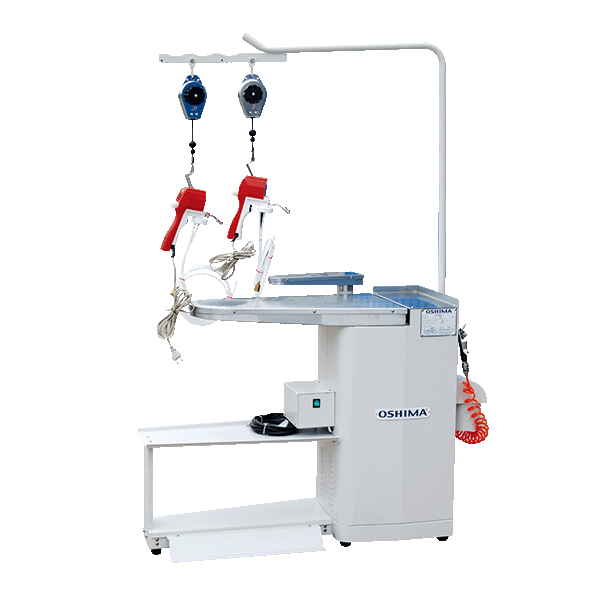

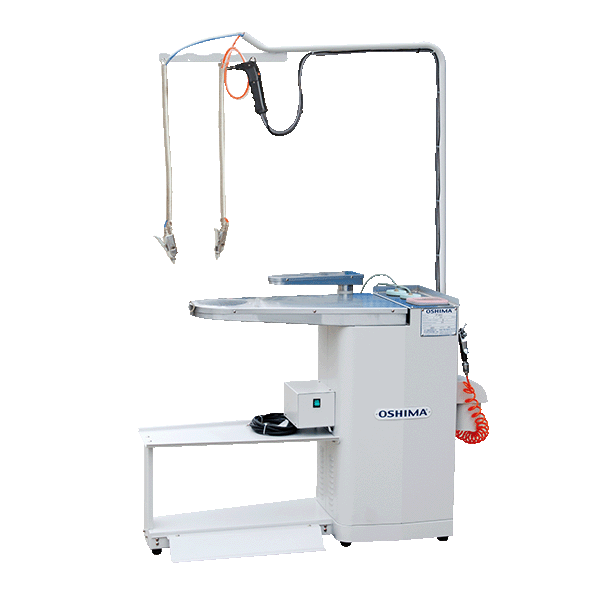

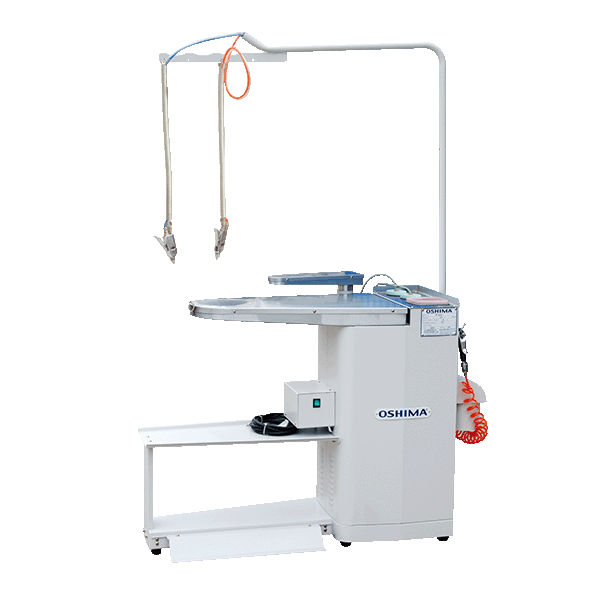

OP-408S is equipped with a steam gun, OP-408H uses an electric spray gun, and OP-408A uses an air spray gun.
Specifications
| Model | OP-408S | OP-408A | OP-408H |
|---|---|---|---|
| Power supply | 1P / 220V | 1P / 220V | 1P / 220V |
| Motor (kW) | 0.37 | 0.37 | 0.37 |
| Suction pressure (Pa) | 400 | 400 | 400 |
| Spray gun motor (kW) | Steam spray gun | - | 0.04 |
| Height of worktable (mm) | 980 | 980 | 980 |
| Dimensions L × W × H (mm) |
1180 × 530 × 1560 | 1180 × 530 × 1560 | 1180 × 530 × 1560 |
| Packaging size L × W × H (mm) |
1280 × 660 × 1250 | 1280 × 660 × 1250 | 1280 × 660 × 1250 |
| N.W / G.W (kg) | 68 / 81 | 68 / 81 | 68 / 81 |
OP-408S
| Power supply | 1P / 220V |
|---|---|
| Motor (kW) | 0.37 |
| Suction pressure (Pa) | 400 |
| Spray gun motor (kW) | Steam spray gun |
| Height of worktable (mm) | 980 |
| Dimensions L × W × H (mm) |
1180 × 530 × 1560 |
| Packaging size L × W × H (mm) |
1280 × 660 × 1250 |
| N.W / G.W (kg) | 68 / 81 |
OP-408A
| Power supply | 1P / 220V |
|---|---|
| Motor (kW) | 0.37 |
| Suction pressure (Pa) | 400 |
| Spray gun motor (kW) | - |
| Height of worktable (mm) | 980 |
| Dimensions L × W × H (mm) |
1180 × 530 × 1560 |
| Packaging size L × W × H (mm) |
1280 × 660 × 1250 |
| N.W / G.W (kg) | 68 / 81 |
OP-408H
| Power supply | 1P / 220V |
|---|---|
| Motor (kW) | 0.37 |
| Suction pressure (Pa) | 400 |
| Spray gun motor (kW) | 0.04 |
| Height of worktable (mm) | 980 |
| Dimensions L × W × H (mm) |
1180 × 530 × 1560 |
| Packaging size L × W × H (mm) |
1280 × 660 × 1250 |
| N.W / G.W (kg) | 68 / 81 |
*Design and specifications subject to change without prior notice.
