Garment Auxiliary Equipment & Accessories

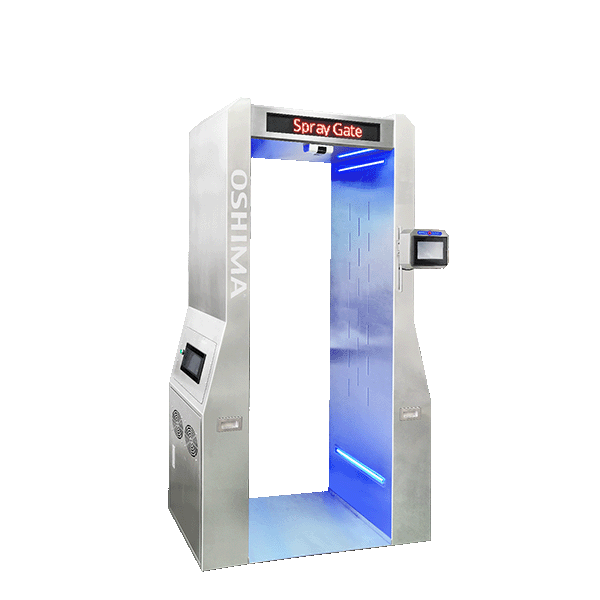

Walkthrough Sanitization Gates OM-78
- Features
- Non-contact walkthrough disinfection gate
- Automatic induction spray system
- Low-angle mist nozzles to reduce direct face spraying
- Large-capacity disinfectant tank
- Face recognition, mask detection, and abnormal temperature alarm
- Optional forehead temperature voice alert system
- Touchscreen control with multilingual interface
- Easy installation with low maintenance requirements
Description
This smart disinfection walkthrough gate is designed for factory entrances, clock-in areas, office access points, and public facility checkpoints. Users walk through the passage, and the misting system starts automatically through non-contact induction.
The system can be equipped with a forehead temperature detection and voice alert module in 15 cm or 60 cm detection distance options. When an abnormal temperature is detected, the system can trigger an alarm, voice notification, and image capture for record keeping.
The gate uses a barrier-free passage design and a large disinfectant tank for high-traffic entry points. It supports touchscreen operation, multilingual interface settings, face recognition, and mask detection for access management needs.
Specifications
Disinfection Gate Specifications
| Model | OM-78 |
|---|---|
| Model | OM-78 |
| Voltage (V) | 110 |
| Waterproof standard | Stainless steel frame, recommended for indoor use |
| Mean time between failures (hours) | 10,000 |
| Nozzle flow (ml / person) | Less than 30 |
| Antibacterial liquid capacity (L) | 18 each for left and right tanks Add hypochlorous acid or hydrogen peroxide according to the required ratio. |
| Internal channel L × W × H (mm) | 400 × 780 × 1950 |
| Machine size L × W × H (mm) | 400 × 1240 × 2150 |
| N.W (kg) | 90 |
| Optional accessory | Infrared forehead thermometer, 15 cm / 60 cm |
Optional Infrared Forehead Thermometer Specifications
| Item | Specification |
|---|---|
| Item | Optional Infrared Forehead Thermometer |
| Camera resolution | 2 million pixels |
| Camera type | RGB + infrared |
| Aperture (mm) | 4.0 |
| Focal length (m) | 0–2 |
| White balance | Auto |
| Operating system | Android 7.1 |
| Image processing | Dual-route ISP |
| Screen | 8-inch full-view IPS LCD |
| Screen resolution | 800 × 1280 |
| Brightness (cd/m²) | 400 |
| Fill light | Infrared and LED fill light |
| Temperature measurement module | Thermal imaging, deviation ±0.3°C |
| Imaging pixels | 32 × 32 |
| Face detection | Supports detection of 5 people at the same time |
| 1:N face recognition | ≥ 99% |
| Face recognition detection time (s) | 0.02 |
| Face feature detection time (s) | 0.2 |
| Liveness detection time (s) | 0.0002 |
| Protection rating | IP64 |
| Working temperature (°C) | -10 to +60 |
| Speaker | 8Ω 2W |
| OSD language | Multilingual |
| Power consumption (W) | 5 max |
| Device size W × L × H (mm) | 1123.5 × 84 × 361.3 |
| Device weight (kg) | 1.5 |
