Fusing & Bonding Machines

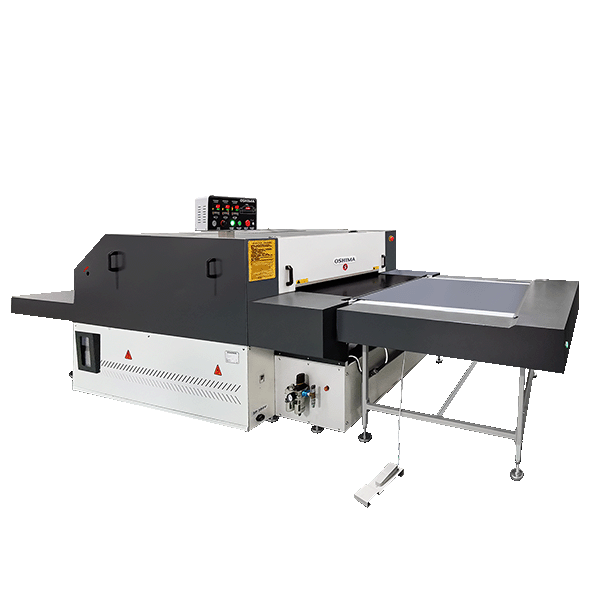

Continuous Fusing Machine OP-1000NE/1200NE
High-pressure continuous fusing for demanding garment production.
- Features
- Designed for demanding garment interlining fusing applications
- Maximum pressure up to 5 kg
- Uses seamless Teflon fusing belt with motor-driven correction
- Oversized pneumatic cylinder lever pressure system
- Preheating zone is 2–3 times longer than standard models
- Equipped with 12 independent heating sets
- Three-zone digital temperature control
- Built-in monitoring for heating, pressure, and machine status
- Heating system lifts away from the belt during high-temperature shutdown
Description
OP-1000NE / OP-1200NE is designed for continuous interlining fusing in demanding garment production. The standard configuration includes seamless belt, motor-driven correction, and upper and lower rotary fabric separation. The oversized pneumatic cylinder lever pressure system provides up to 5 kg of pressure, while the extended preheating zone prepares fabric and interlining before fusing. Optional configurations include upper separator with lower scraper, dual scraper, lower scraper with upper separator, extended conveyor belt, and delivery / collecting rack.
Specifications
| Model | OP-1000NE | OP-1200NE |
|---|---|---|
| Power supply | 3P / 380V | |
| Motor (kW) | 0.44 | |
| Heater (kW) | 28.8 | 33.6 |
| Temperature (℃) | Room temperature ~ 200 | |
| Air Pressure (MPa) | 0 ~ 0.5 | |
| Fusing Width (mm) | 1000 | 1200 |
| Fusing Time (m/min) | 200 ~ 6000 | |
| Dimensions L × W × H (mm) |
4860 × 1650 × 1400 | 4860 × 1850 × 1400 |
| Packaging Volume L × W × H (mm) |
1810 × 1600 × 975 + 2830 × 1830 × 1600 + 1930 × 1140 × 1330 |
1810 × 1800 × 975 + 2830 × 2030 × 1600 + 1930 × 1340 × 1330 |
| N.W / G.W (kg) | 1050 / 1200 | 1150 / 1350 |
OP-1000NE
| Power supply | 3P / 380V |
|---|---|
| Motor (kW) | 0.44 |
| Heater (kW) | 28.8 |
| Temperature (℃) | Room temperature ~ 200 |
| Air Pressure (MPa) | 0 ~ 0.5 |
| Fusing Width (mm) | 1000 |
| Fusing Time (m/min) | 200 ~ 6000 |
| Dimensions L × W × H (mm) |
4860 × 1650 × 1400 |
| Packaging Volume L × W × H (mm) |
1810 × 1600 × 975 + 2830 × 1830 × 1600 + 1930 × 1140 × 1330 |
| N.W / G.W (kg) | 1050 / 1200 |
OP-1200NE
| Power supply | 3P / 380V |
|---|---|
| Motor (kW) | 0.44 |
| Heater (kW) | 33.6 |
| Temperature (℃) | Room temperature ~ 200 |
| Air Pressure (MPa) | 0 ~ 0.5 |
| Fusing Width (mm) | 1200 |
| Fusing Time (m/min) | 200 ~ 6000 |
| Dimensions L × W × H (mm) |
4860 × 1850 × 1400 |
| Packaging Volume L × W × H (mm) |
1810 × 1800 × 975 + 2830 × 2030 × 1600 + 1930 × 1340 × 1330 |
| N.W / G.W (kg) | 1150 / 1350 |
*Design and specifications subject to change without prior notice.
