  • AI X-ray Inspection System OX-400/600
1 / 2

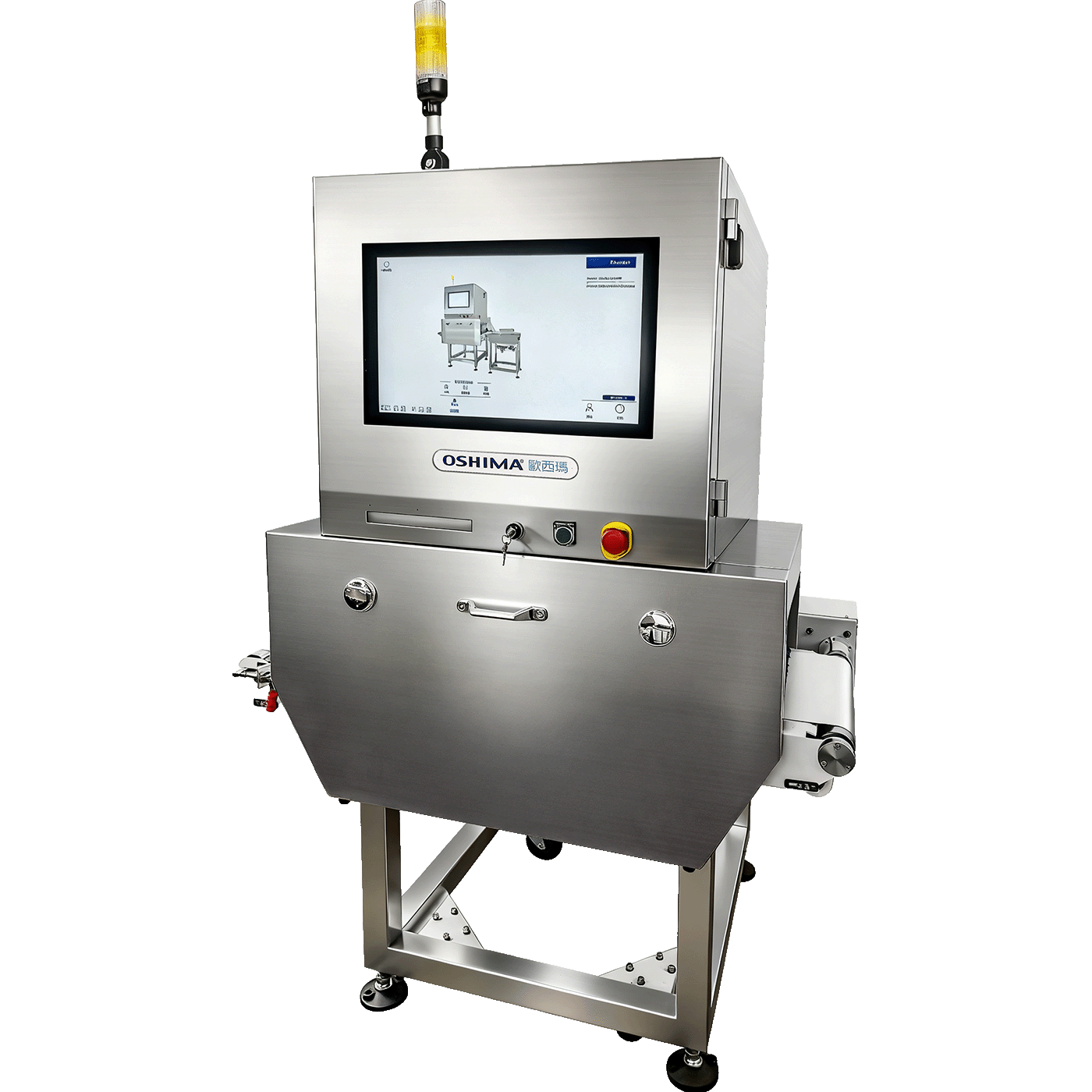

AI X-ray Inspection System OX-400/600
X-ray inspection system for detecting foreign objects in food production.
  • PriceNT
  • Our price:NT
  • Use bonus pointspt.
Description:

The OX-400/600 X-ray inspection system is designed to detect foreign contaminants in food manufacturing, helping ensure product safety and consistent quality. The system identifies a wide range of materials, including metal, glass, stone, dense rubber, and certain plastics, supporting reliable inspection across different product types. With real-time detection, manufacturers can reduce the risk of defective products and prevent costly recalls. Equipped with GPU-based image processing, the machine enhances detection clarity and maintains stable inspection performance in continuous production environments. A 21.5-inch touchscreen interface and storage for over 1,000 product profiles allow easy operation and quick product changeover. The system supports multiple rejection options to remove defective items automatically, helping maintain production flow. Its modular design enables tool-free cleaning and simple maintenance, reducing downtime. With remote connectivity via 4G or Wi-Fi, operators can monitor system status and perform diagnostics efficiently.



    Specification
    Model
    OX-400 OX-600
    Power supply
    1P AC220V 50/60Hz
    Rate (W)
    1500
    Detective height (mm)
    150 300
    Detective width (mm)
    400 600
    Maximum detection accuracy (mm)
    Fe: Φ ≥ 0.6 mm, Stainless steel ball: Φ ≥ 0.6 mm, Ceramic ball: Φ ≥ 0.8 mm, Glass ball: Φ ≥ 1.2 mm, Metal wire: Φ ≥ 0.5 mm (depending on material and conditions)
    Conveyor speed (m/min)
    10-60
    Alarm
    Alarm and machine stop
    X-ray output power
    210W-350W (optional)
    X-ray voltage
    80-120KV (optional)
    X-ray current
    Adjustable
    X-ray emission dose
    <1 μSv/h, including conveyor inlet and outlet
    Network connection
    4G / Wi-Fi (supports remote operation)
    Reject methods
    Alarm stop / flipper / push rod / swing arm (optional) Alarm stop / push rod
    Dimensions LxWxH (mm)
    1200x1009x1887 1512x1285x2285
    Packaging volume LxWxH (mm)
    1300x1200x1950 1610x1360x2190
    N.W/G.W (kg)
    250/300 420/520
    Design and specifications subject to change without prior notice.
