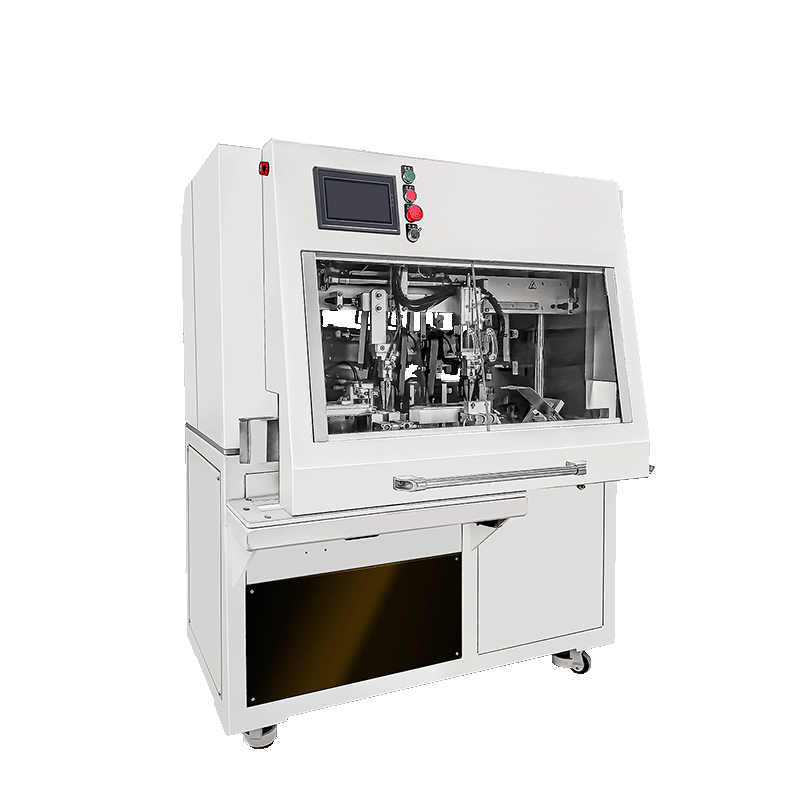

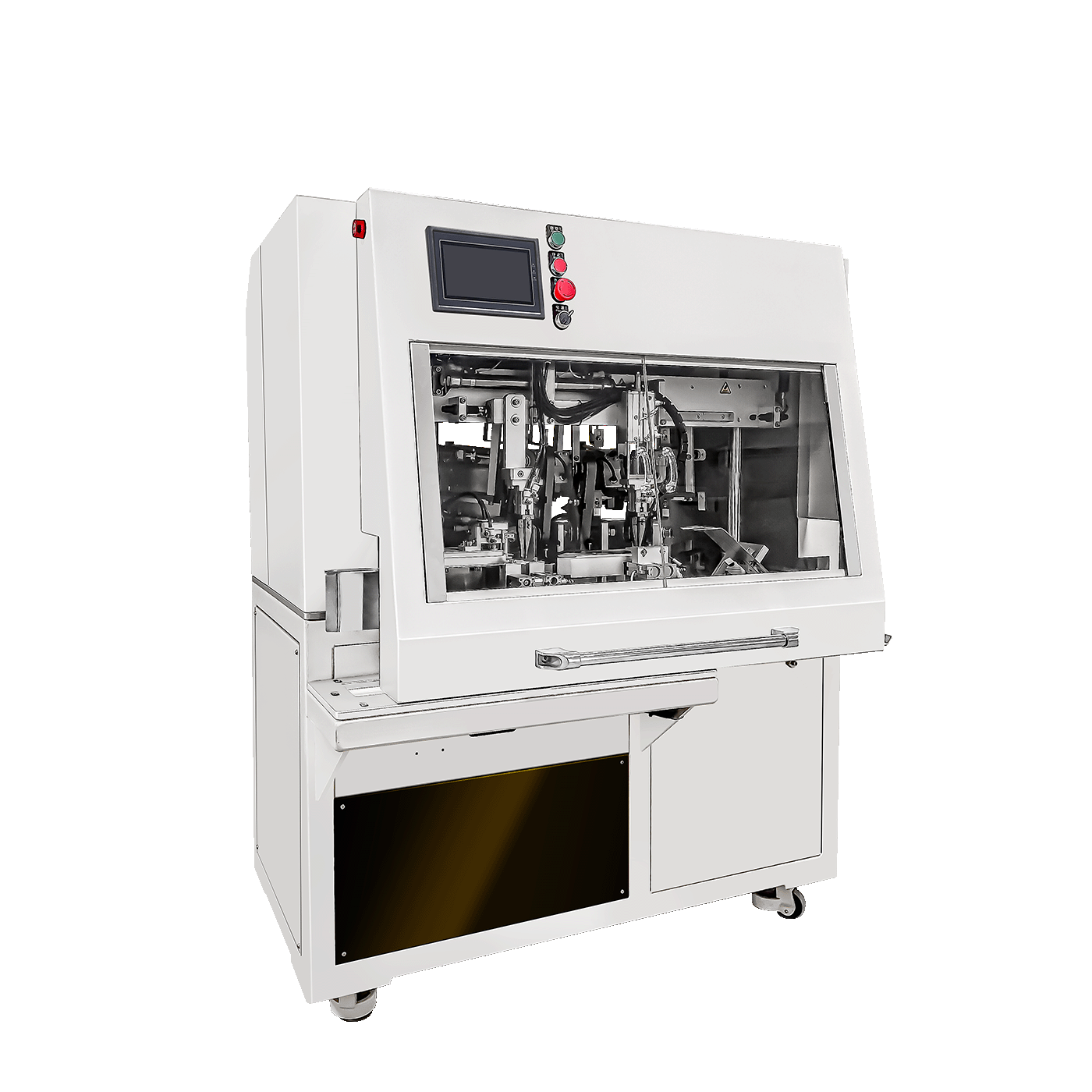

Automatic Tag Threading Machine TTS-1200
Tagging automation for high-volume operations
Description：
The automatic hangtag threading machine delivers fast and precise threading for various tag types, including glue, PVC, and paper. It processes up to 4 hangtags per set, with each tag completed in 4-6 seconds. The machine uses a plastic needle for threading, while air suction ensures accurate hangtag positioning. Additionally, infrared positioning confirms correct pellet placement. By automating the punching, forming, and threading processes, this machine minimizes manual errors, enhances productivity, and improves production efficiency, making it an ideal solution for the garment manufacturing, packaging, and retail industries.
Specification
Model
TTS-1200
Power supply
1P/220V
Power (kW)
0.6
Use air pressure (MPa)
0.5
Running speed (h/pcs)
4-6/pcs
Dimension LxWxH (mm)
1400x1000x1500
Packaging volume LxWxH (mm)
1450x1050x1650
N.W/G.W (kg)
300/350
Design and specifications subject to change without prior notice.
