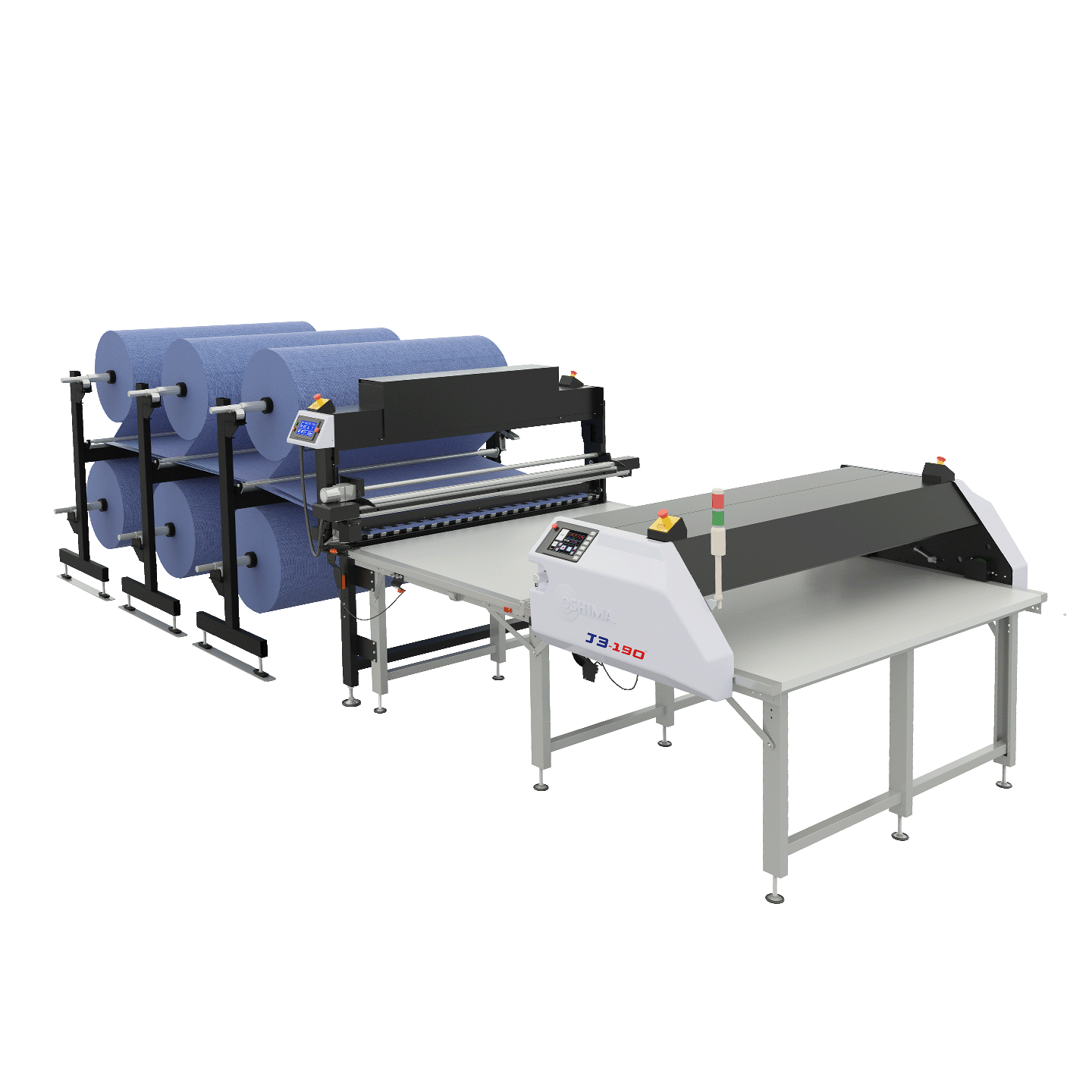

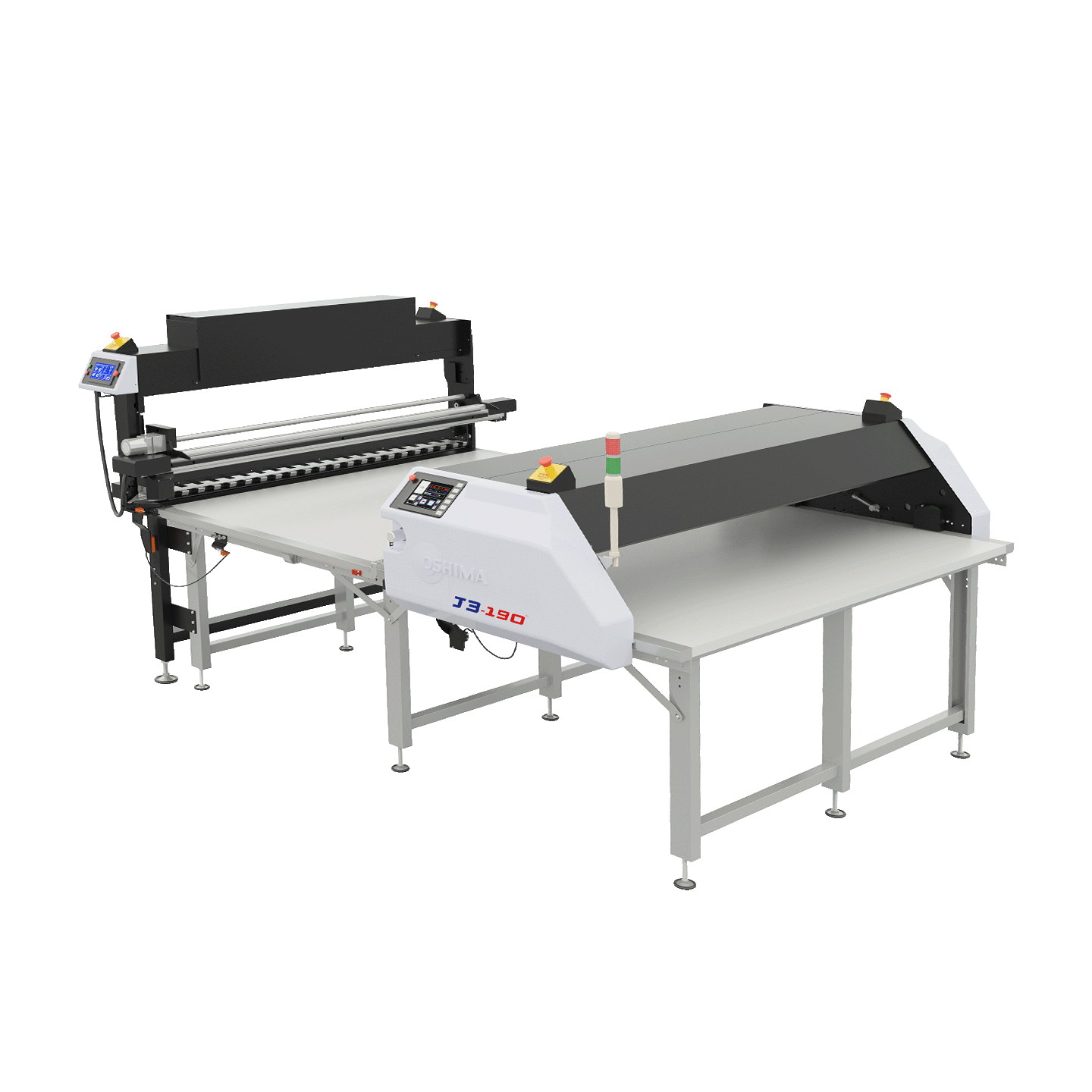

The J3 multi-roll fabric spreading machine is designed for high-volume woven fabric production, especially for medical textiles such as masks and isolation gowns. It enables multi-layer spreading with up to six fabric rolls, improving efficiency and output in mass production environments. Equipped with mechanical clamps and powered feeding arms, the machine ensures stable fabric feeding and consistent layer alignment. Adjustable tension control and automatic edge alignment help maintain spreading accuracy and reduce material distortion. The ground-level loading system improves operator safety and simplifies roll handling, making it suitable for continuous industrial use. With a durable structure and low maintenance design, the J3 provides reliable performance for long production hours.
Capacity & material handling- Supports up to 6 fabric rolls
- Handles rolls up to 300 kg
- Designed for multi-layer spreading
Spreading precision & control- Adjustable tension control
- Stable feeding system
- Automatic edge alignment
Efficiency & operation- Ground-level loading for safer handling
- Continuous operation for mass production
- Easy-to-use touchscreen interface
Durability & maintenance- Robust design for long-hour operation
- Low maintenance requirements
- Quick setup and reduced downtime
左右滑動看表格| Model | ||||||
| J3-160 J3-190 |
||||||
| Power Supply | V | 220 | ||||
| Motor | kW | 1 | ||||
| Maximum cloth width | mm | 160: 1600mm/63" 190: 1900mm/75" |
||||
| Table width | mm | 160: 1830mm/72" 190: 2130mm/84" |
||||
| Lay height | mm | 160 | ||||
| Travel speed | m/min | 95 | ||||
| Standard | 1. Cutting device 2. Heavy duty clamp device | |||||
| Pulling machine | LxWxH (mm) | J3-160: 2200x1150x520 J3-190: 2500x1150x520 |
||||
| Cutting machine | LxWxH (mm) | J3-160: 2150x540x1570 J3-190: 2450x540x1570 |
||||
| Packing volume (Pulling + Cutting) | LxWxH (mm) | J3-160: 2350x2060x1895 J3-190: 2850x2150x1900 |
||||
| N.W/G.W | (kg) | J3-160: 310/510 kg J3-190: 340/560kg |
||||
| Spreading method | One-way spreading (face-up) | |||||

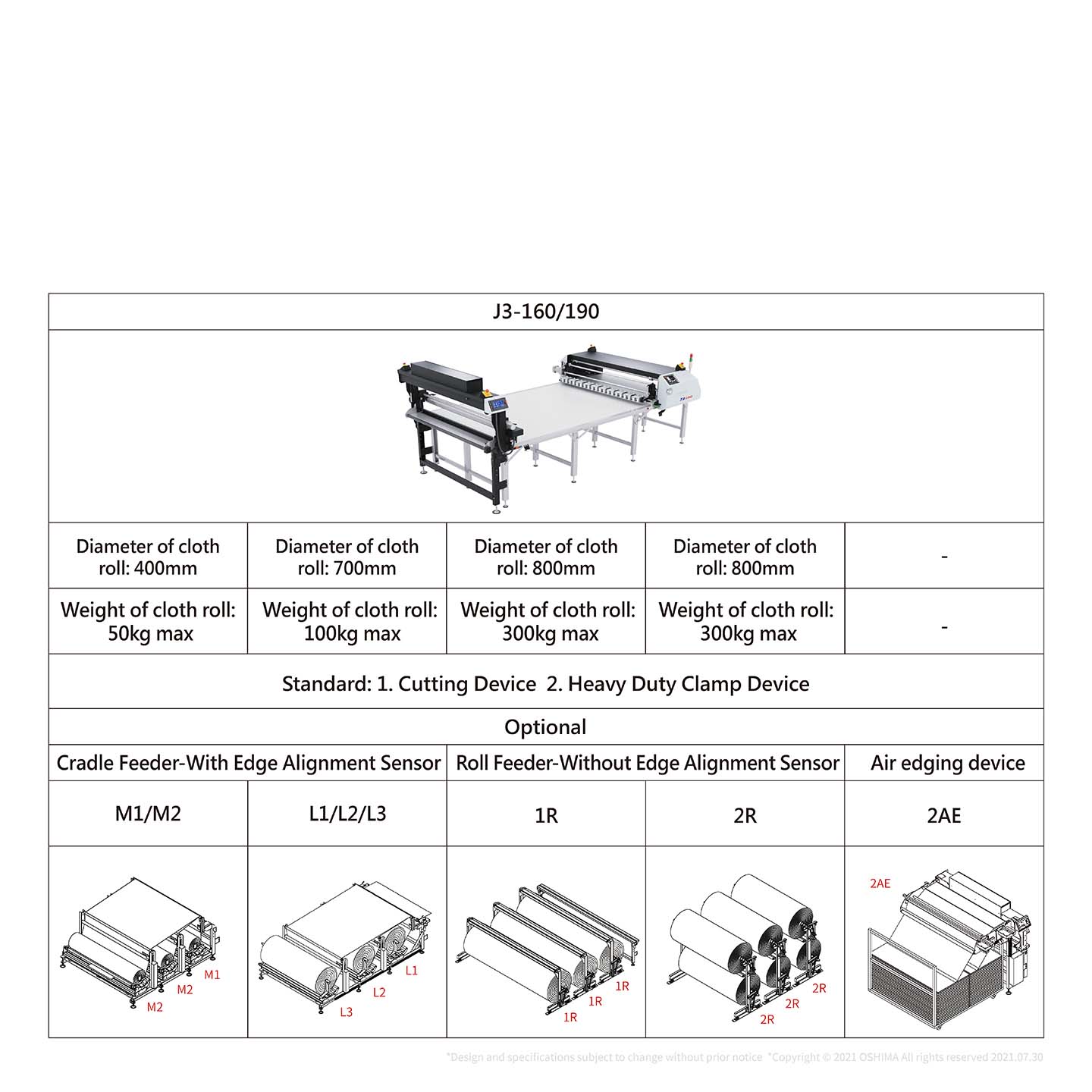

| Optional | Cradle feeder with edge alignment sensor | Roll feeder without edge alignment sensor | Air edging device | |||
| Model | M1-160/190 M2-160/190 |
L1-160/190 L2-160/190 L3-160/190 |
1R-160/190 | 2R-160/190 | 2AE-160/190 | |
| Diameter of cloth roll | 400 mm max | 700 mm max | 800 mm max | 800 mm max | ||
| Weight of cloth roll | 50 kg max | 100 kg max | 300 kg max | 300 kg max | ||
* The loading weight and diameter of fabric rolls may vary depending on the type of fabric.
